The analog circuit breaker is equipped with the background control software, which provides visual control interface and has the following functions:
Switch control
Tripping time setting, tripping current
Background software switch failure function
Background software switch three-phase inconsistent function
Background software switch tripping accident sound function


Outline dimension
Screen size: 600*800*2260mm standard 47U cabinet
Screen color, RAL 7035
Screen door opening: front and rear door
Screen terminal: Phoenix terminal
2   analog circuit breaker

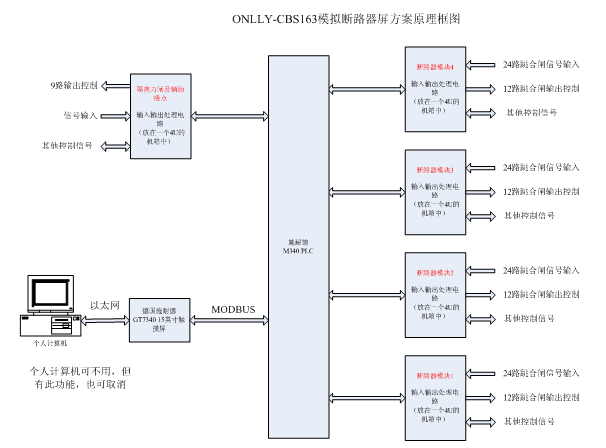

Analog circuit breaker: CBS-163, circuit breaker 16 groups, each group of 3 phase; isolation knife brake group of 32
- each three-phase circuit breaker, using PC, and PC control software, all parameter setting, status display and manual operation can be completed by the host computer, real-time tripping action is controlled by computer equipment, power supply: 220V + 15%AC
3   analog circuit breaker operation mode
- phase, phase separation operation, tripping operation power supply voltage: DC110V~ 220V, with double trip function
4   analog circuit breaker control signal requirements
Circuit breaker trip time selection: 25ms-500ms (1ms resolution extremely adjustable, each phase of the trip time can not be consistent, can be changed according to requirements);
- breaker closing circuit time: 25ms-500ms (1ms resolution is adjustable, the closing time of each phase can be inconsistent, according to the requirements of change);
Circuit breaker position auxiliary node output: each phase to provide 2 normally closed node and the 2 regular open node (common point is not shared);
Breaker pressure low node;
Analog circuit breaker status indication (separate LED lamp indication);
Isolation knife gate and the realization of the auxiliary contacts: each group to provide 1 normally closed nodes and the 2 regular open node (common point is not shared);
Current, tripping coil is 0.3A, 0.6A
